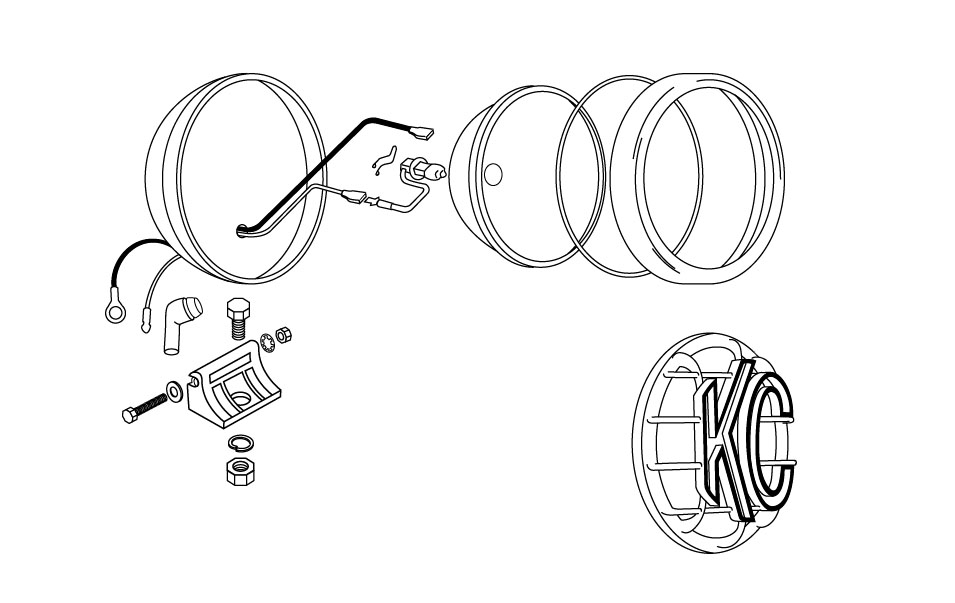

Apollo Pro Exploded View / Replacement Parts

The diagram covers pair packs and single lights from:

5" Apollo Pro Halogen Pair Pack (450, 451, 452)

6" Apollo Pro Halogen Pair Pack (9150, 151, 152)

Replacement Parts

H3 Halogen Replacement Bulb - Clear - 55W

H3 Halogen Replacement Bulb - Clear - 100W

Lens / Reflector Spot, Spread and Flood

Kindly be aware that several components shown in the diagram above are not directly accessible for purchase on our website. We encourage you to initiate a replacement part inquiry here, attaching a photo of the light that clearly indicates the area requiring a replacement. Our team will promptly assist with finding the replacement part needed.

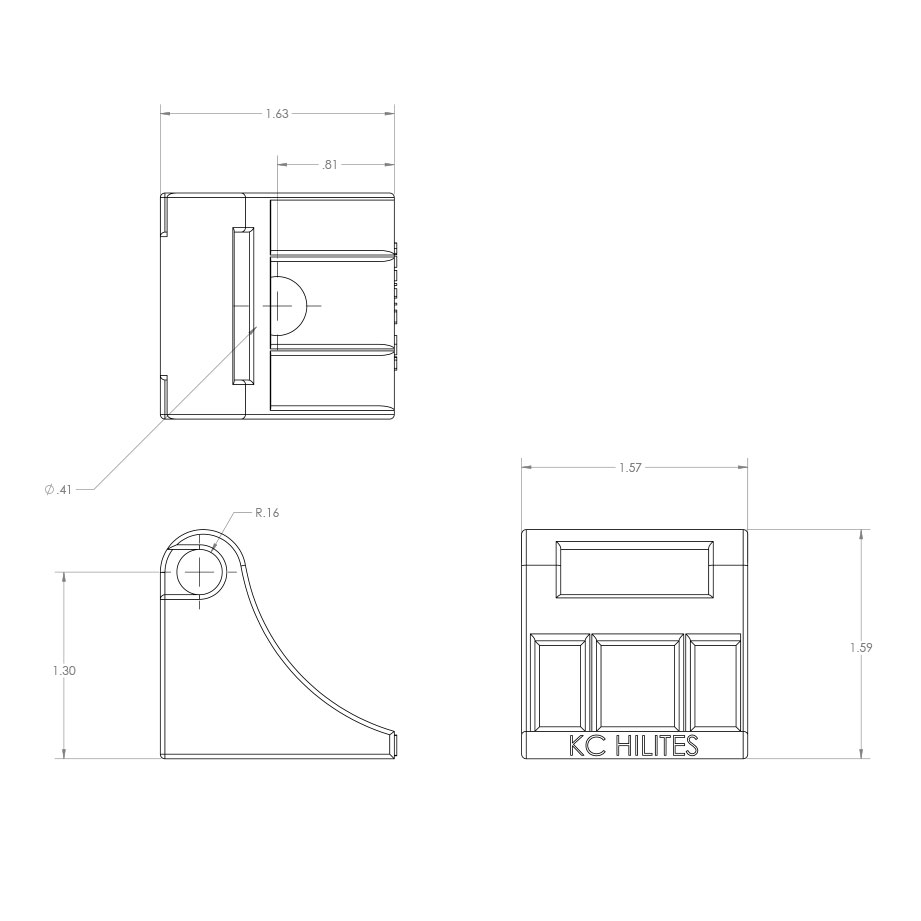

Mounting Base dimensions:
