Gravity Titan LED insert Beam Pattern Identification Guide

Please refer to the pictures below to Identify the Beam Pattern of your Gravity Titan LED Light Insert.

The easiest way to ID the Inserts by Beam pattern is to look at the fluting at the front bottom of the Light Insert, referenced by the blue lines in the images below.

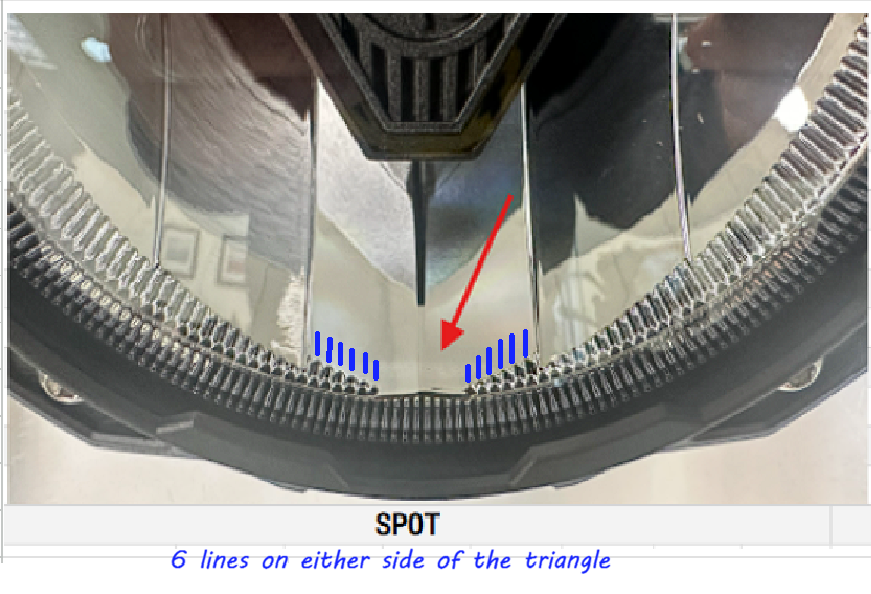

Our Gravity Light bars (Titan and Pro6) use Spot beam inserts in the center of the Light bar.

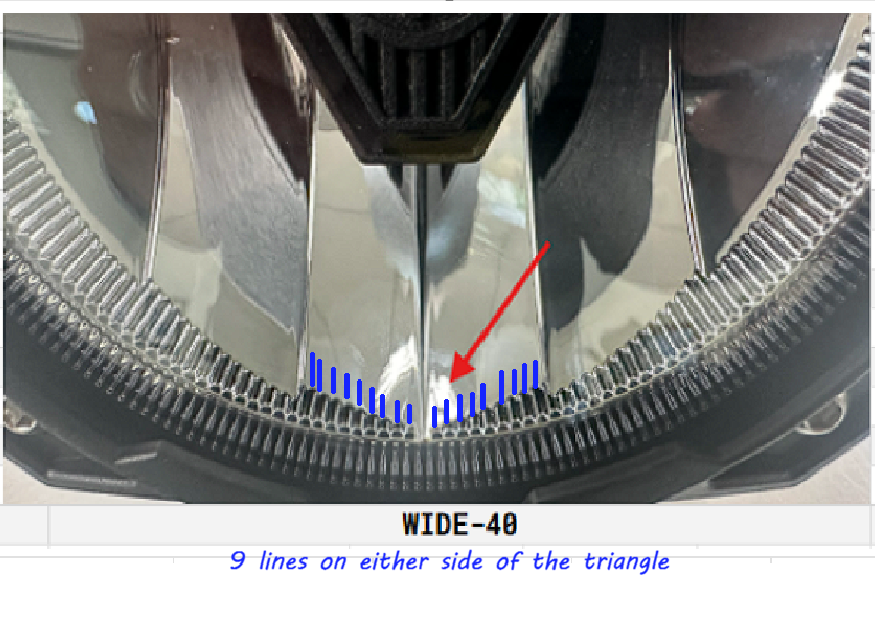

Our Gravity Light bars (Titan and Pro6) use Wide-40 beam inserts on the outsides of the Light bar.

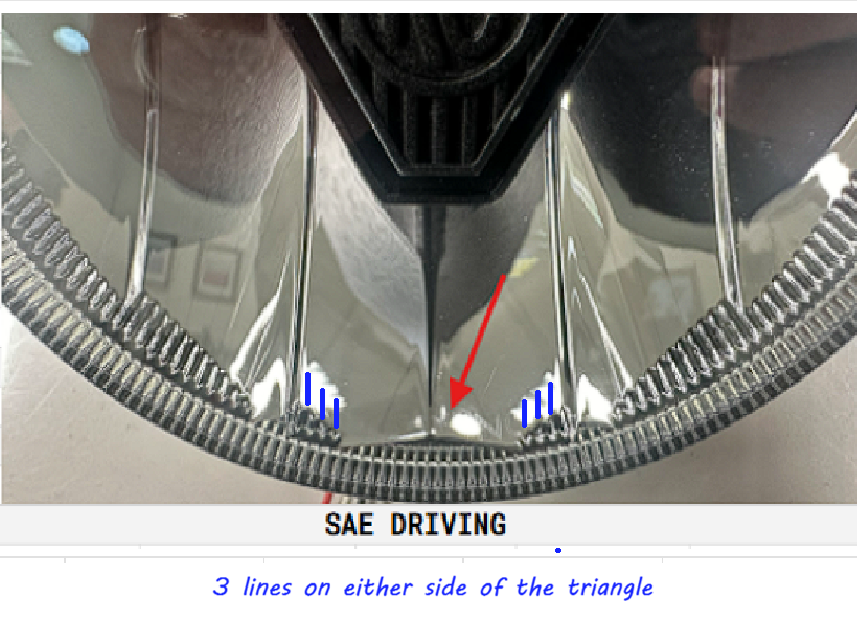

Driving Beam Inserts are typically used in Gravity Titan Singles or Pro6 Singles
