The KC FLEX ERA® 3 Dual Mode SAE Fog Lights (2-Light Master Kit, SKU 0284) give you two lights in one: a street-legal SAE J583 fog beam for the road, and a high-output beam for the trail at the flip of a switch. Each kit includes everything needed for a complete install, plus both clear and selective yellow lenses so you can tune the light to your conditions.
How Dual Mode Works
- Fog Mode (on-road): An SAE J583 compliant fog beam. It's low and wide with a flat horizontal cutoff, so you can see the sides of the road in poor weather without light reflecting back into your eyes. Think of it as your "low beam."
- High Mode (off-road use only): Adds a high-output spot beam on top of the fog beam for maximum visibility on the trail. Think of it as your "high beam." This mode is not street legal.
| Fog Mode | High Mode (Off-Road Only) | |
|---|---|---|
| Lumens per light | 3,682 lm | 5,949 lm |
| Lux per light | 94.4 lx | 199.8 lx |
| Beam distance | 84 m | 124.6 m |
| Amp draw per light | 2.9 A | 4.58 A |

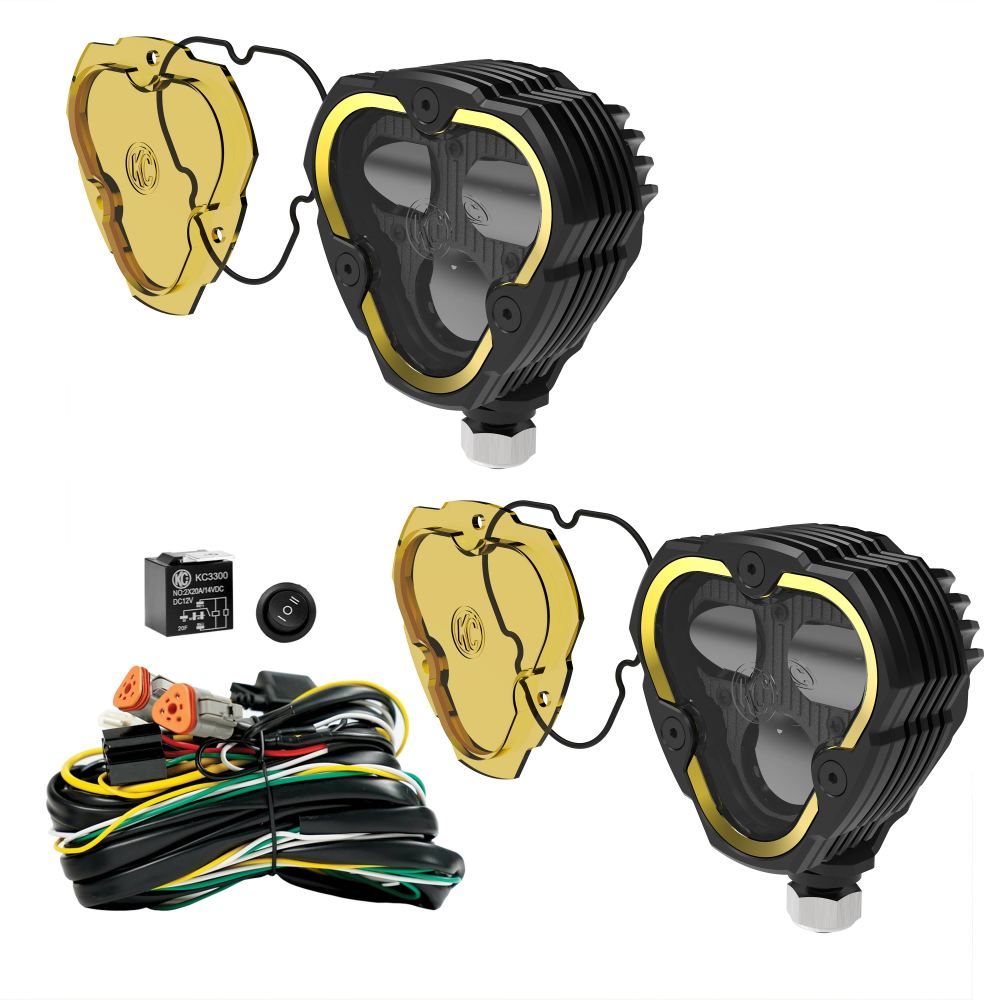

What's in the Box
- (2) FLEX ERA® 3 Dual Mode SAE LED Light Pods
- (2) SAE Clear Lenses (pre-installed)
- (2) SAE Selective Yellow Lenses
- (2) Universal mounting brackets
- Wiring harness with weatherproof connectors and switch
A single-light Master Kit is also available (SKU 1284). It includes one light and one selective yellow lens.
Clear vs. Selective Yellow Lenses
- Clear: The highest-intensity output and the most performance.
- Selective Yellow: Better visibility if you regularly drive in heavy rain, fog, snow, or dust.
Selective yellow is used instead of amber because it keeps the light SAE compliant while preserving intensity.
Mounting & Street Legality
- To be street legal, the lights must be mounted below or in line with your vehicle's headlights.
- Mount them right-side up. The beam is biased, so flipping the light upside down puts the fog beam above the off-road beam and reduces performance in both modes.
- Blackout covers are not included and are not needed when the lights are mounted at or below the headlights.
Vehicle-Specific Fog Pocket Kits
Vehicle-specific kits are available for popular applications, including the Jeep Wrangler JK/JL, Gladiator JT, Toyota Tacoma and 4Runner, Subaru, and more. These kits are plug-and-play, with no drilling or cutting, and include all the brackets and wiring needed to replace your factory fog lights. Use the vehicle selector on our website to find the kit for your vehicle.
Personalization
FLEX ERA® 3 lights come standard with a gold accent bezel. Red, blue, and black bezels are sold separately and fit all FLEX ERA® 3 light pods, both SAE and off-road versions.
Frequently Asked Questions
Does swapping lenses affect my warranty?
No. The swappable lenses are covered under the KC Adventure Further® Guarantee. We encourage you to try both lens options. Just swap them in a clean, controlled environment. Our installation videos show best practices, or you can contact us for help.
Can I use amber shields or covers on these lights?
Not for on-road use. Amber snap-on shields are not SAE compliant, so fog mode with an amber cover is no longer street legal. Also, in most fog pocket installs, shields and covers can't easily be fitted or removed.
Can I put the selective yellow lens on an off-road FLEX ERA® 3?
We don't recommend it. The internal optics of the SAE and off-road versions are completely different. Changing the lens will not make an off-road light street legal.
Can I upgrade my FLEX ERA® 3 Off-Road lights to the SAE version?
Yes. The size and form factor are identical, so the SAE lights fit the same mounting locations. However, the wiring harnesses are not interchangeable because the two versions draw different loads. Use the harness included with the SAE kit.
How do the SAE lights compare to the off-road FLEX ERA® 3?
The off-road versions have more intensity and a larger beam pattern. The off-road Combo produces about 300 lx and the off-road Spot about 800 lx per light, compared to 94.4 lx (fog) and 199.8 lx (high) for the SAE version. Choose the SAE version if you need street-legal fog lighting.
Do the SAE lights have an amber backlight?
No. The second power circuit drives the off-road high-output beam instead of an amber backlight.
Are light locks compatible?
Yes, on kits that use the universal bottom-mount bracket (SKUs 284, 1284, 97147, and 97155). Light locks are not compatible with vehicle-specific fog pocket brackets.
Can I buy the pair kit without the switch and wiring?
No. Pair kits always include the complete wiring harness and switch, so you have everything needed for the install.
The KC FLEX ERA® 3 Dual Mode SAE Fog Lights give you street-legal fog lighting and trail-ready output in one compact light. Not sure which kit fits your vehicle? Contact our team and we'll help you find the right setup.
