This diagram illustrates the proper installation and configuration of a standard 2-light LED setup connected to a single switch using the KC wiring harness #6308. These instructions enable the connection of up to two 55W lights, with a maximum power limit of 110W on the harness. NOTE- Will not work with any the the Flex Era product lines.

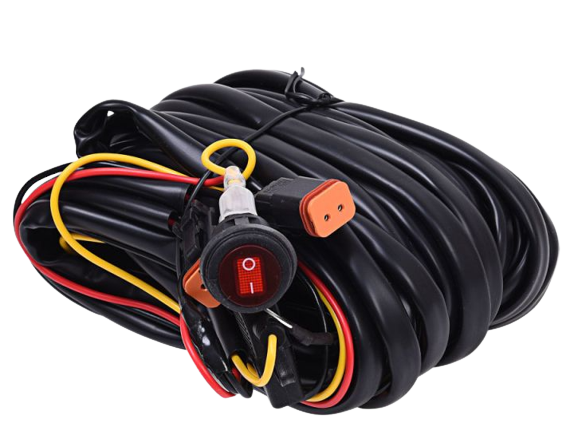

-6308 Wiring Harness for Two Lights w/ 2-Pin Deutsch Connectors
-For 2 Lights up to 55w Each (Maximum 110w total)
-Weatherproof Sealed 2-Pin Deutsch Connectors
-Illuminated LED Light Switch
-No Relay Required
