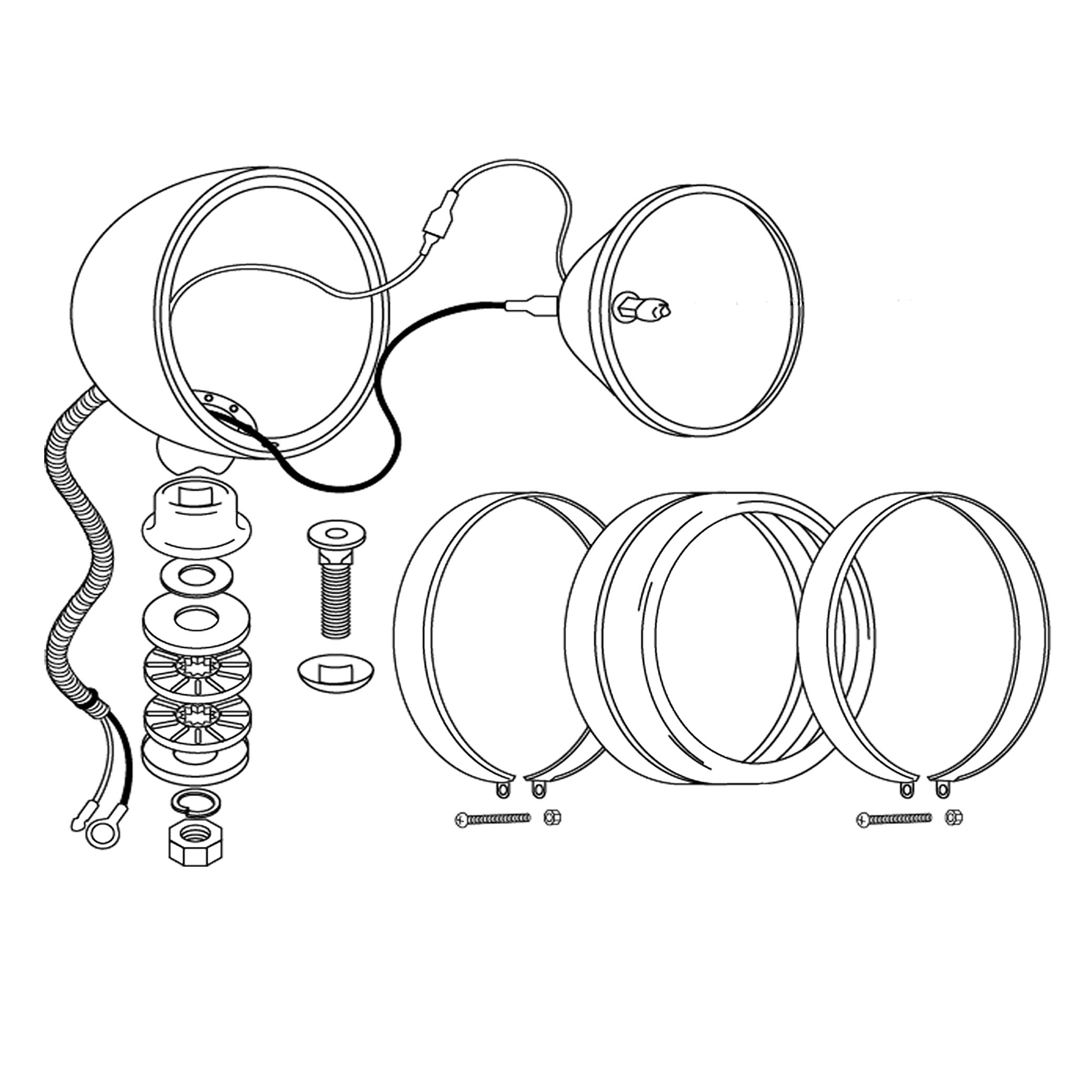

Daylighter Exploded View / Replacement Parts

Replacement parts types: Housings | LED | Halogen | HID

For the following pair packs:

Daylighter LED (650, 651, 652, 653)

Daylighter Halogen (634, 238, 631, 237, 630, 633, 635, 239, 632, 635)





Light Housings and Hardware:

#3024 -  DAYLIGHTER REPLACEMENT SHOCK MOUNT - BLACK

#3025 -  DAYLIGHTER METAL SHOCK MOUNT CUP

#3031 -  DAYLIGHTER BOTTOM (BELL) CUP - BLACK

#3032 -  DAYLIGHTER BOTTOM (BELL) CUP - CHROME

#3041 -  DAYLIGHTER BOTTOM (BELL) CUP - STAINLESS STEEL

#30181 - DAYLIGHTER GROMMET, WIRE AND FLEX REPLACEMENT

#3018 -  DAYLIGHTER GROMMET, WIRE AND FLEX REPLACEMENT

#6315 -  WIRING HARNESS WITH 40 AMP RELAY AND LED ROCKER SWITCH

#30336 - 72" FLEX TUBING - STAINLESS STEEL

#3033 -  12" DAYLIGHTER FLEX TUBING - STAINLESS STEEL

#3038 -  BEZEL SCREW

#3042 -  6" DAYLIGHTER BEZEL WITH SCREW AND NUT - STAINLESS STEEL

#3026 -  6" DAYLIGHTER BEZEL WITH SCREW AND NUT - BLACK

#3027 -  6" DAYLIGHTER BEZEL WITH SCREW AND NUT - CHROME

#3028 -  6" DAYLIGHTER RUBBER REFLECTOR HOLDER - BLACK



LED:

#42053 - GRAVITY® LED G6 OPTICAL INSERT SINGLE - SPREAD BEAM

#42133 - GRAVITY® LED G6 OPTICAL INSERT SINGLE - SPOT BEAM

#42054 - GRAVITY® LED G6 OPTICAL INSERT PAIR PACK SYSTEM - SPREAD BEAM

#42134 - GRAVITY® LED G6 OPTICAL INSERT PAIR PACK SYSTEM - SPOT BEAM

#42056 - GRAVITY® LED G6 OPTICAL INSERT PAIR PACK SYSTEM - WIDE-40 BEAM



Halogen:

#3070 -  H3 HALOGEN BULB CLIP

#2776 -  H-3 HALOGEN BULB - CLEAR 130W

#2767 -  H-3 HALOGEN BULB - CLEAR 100W

#4205 -  6" LENS/REFLECTOR - SPREAD BEAM

#4206 -  6" LENS/REFLECTOR - FOG BEAM

#4213 -  6" LENS/REFLECTOR - SPOT BEAM

#4219 -  6" LENS/REFLECTOR - FLOOD BEAM



HID:

#2602 -  D1S BULB HID - (4200K / CLEAR)

#4212 -  6" LENS/REFLECTOR - SPOT BEAM

#42191 - 6" HID LENS/REFLECTOR - FLOOD BEAM
